flange end
Ezzi Hardware, is a well known Manufracturer, dealer, stockist, supplier & distributor of a comprehensive range of Pipes and Valves. These valves are appreciated among clients for their attributes which includes long functional life, precision engineering, dimensional accuracy and are leak-proof.

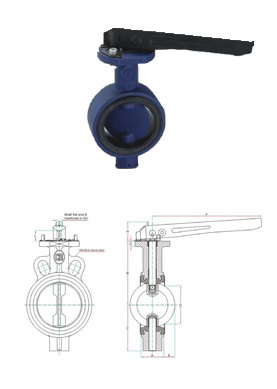

- Type of value: Centric disc butterfly valve with rubber lined body
- Body type: Single piece,short water or water lugged
- Seal type : Integrally bonded, replaceable
- Size range: DN 50 to DN 600
- Pressure rating: PN 10 / PN 16
- Operating temeperature: -30 c to 130 c (depending on MOC)
- Seal leakage performance: Tight shut off
- Operation: Hand lever operation - DN 50 - DN 300, Worm gear operation - DN 50 - DN 600, Electrical / Pneumatic actuator operation - optional

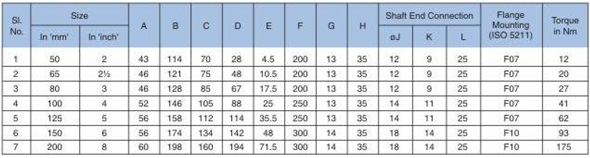

all dimensions are in MM
