home ⇒⇒ Diaphragm Valves

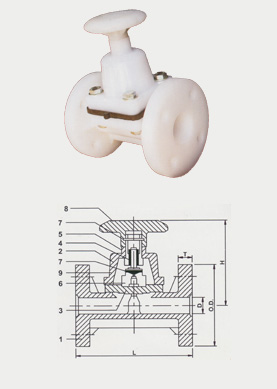

flange end
Ezzi Hardware, is a well known Manufracturer, dealer, stockist, supplier & distributor of a comprehensive range of Pipes and Valves. These valves are appreciated among clients for their attributes which includes long functional life, precision engineering, dimensional accuracy and are leak-proof.
all dimensions are in MM
| Size In | L | OD | H | T |
|---|---|---|---|---|
| 15mm | 120 | 100 | 100 | 16 |
| 20mm | 120 | 100 | 100 | 16 |
| 25mm | 130 | 120 | 114 | 17 |
| 40mm | 163 | 140 | 173 | 17 |
| 50mm | 195 | 160 | 187 | 20 |
| 65mm | 247 | 185 | 220 | 24 |
| 80mm | 247 | 200 | 220 | 24 |

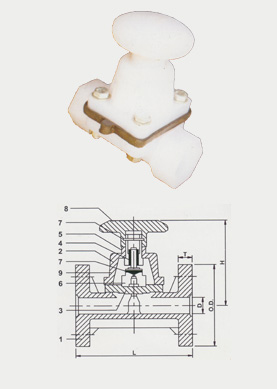

screw end
all dimensions are in MM
| Size IN | L | T | H |
|---|---|---|---|
| 1/2 | 106 | 20 | 100 |
| 3/4 | 106 | 20 | 100 |
| 1 | 124 | 23 | 114 |
