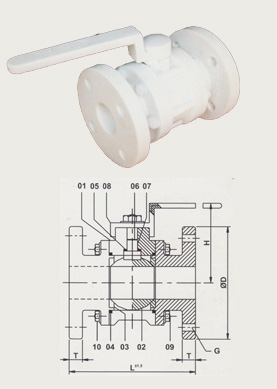

flange end
Ezzi Hardware, is a well known Manufracturer, dealer, stockist, supplier & distributor of a comprehensive range of Pipes and Valves. These valves are appreciated among clients for their attributes which includes long functional life, precision engineering, dimensional accuracy and are leak-proof.
all dimensions are in MM
| SIZE IN | D | T | L | H |
|---|---|---|---|---|
| 1" | 120 | 18 | 150 | 88 |
| 1.1/2" | 140 | 20 | 172 | 110 |
| 2" | 168 | 22 | 200 | 118 |
| 2.1/2" | 185 | 25 | 235 | 150 |
| 3" | 200 | 25 | 250 | 160 |
| 4" | 230 | 28 | 300 | 185 |
| 6" | 300 | 32 | 425 | 235 |
| 1/2" | 95 | 15 | 130 | 65 |
| 3/4" | 100 | 16 | 148 | 75 |

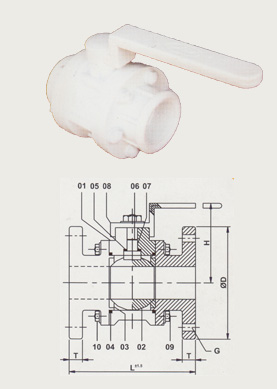

screw end
| Size | Face to face length | Thread length |
|---|---|---|
| 1/2" | 117 | 23 |
| 3/4" | 129 | 24 |
| 1" | 125 | 30 |
| 1.1/2" | 150 | 33 |
| 2" | 177 | 38 |
| 2.1/2" | 215 | 40 |
| 3" | 250 | 53 |
| 4" | 275 | 40 |
